New System, Latest Technology Semi-Automatic Front Feed Shrink Machine
  1. Home page
  2. Shrink Machines
  3. New System, Latest Technology Semi-Automatic Front Feed Shrink Machine

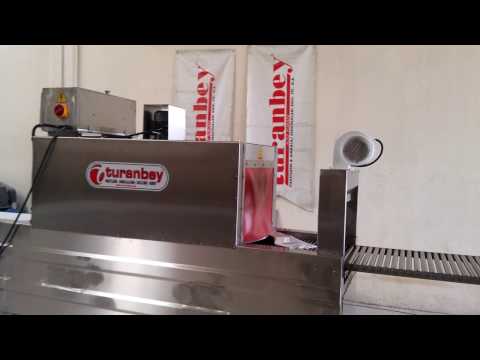

Machine Photos

General features
Semi Automatic Shrink Machine; Generally, in order to prevent the boxes from being damaged during transportation, most of the product is covered with PE packaging. It is also used to combine boxes into a single whole by combining them in multiple groups. It meets the demands of a wide range of customers in various sectors such as food, beverage, medicine, chemistry, cosmetics, paint, printing and automotive. It provides easy and safe packaging in pan or non-pan products. In this way, it both visualizes the products and reduces the cost of parcels.

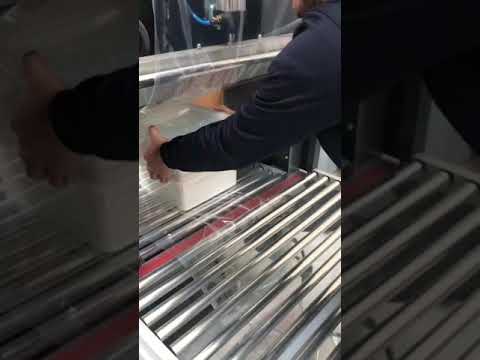

Application Videos

Average Electricity Consumption 4 Kw / Saat Capacity 450 Koli / Saat (koli ve eleman hızına göre)
Electrical Connection Trifaze 3 x 380 W 50Hz ve Topraklama Hatta Net Tunnel Dimension 450 x 620 x 1450 mm
Paste Time Setting 0.5-0.3 sn Bonding System Tek Pistonlu Pnomatik (Kompresor)
Operating temperature 180-250 C Heater Power 1 x 14 x 1000 w = 14000 Watt
Air Needy 4 At 25 Lt Dimensions 95 x 385 x 180 cm
Jaw length from 60 cm to 120 cm and tunnel size option according to the largest product; According to the size of the products you will work with, the standard manufacturing dimensions of the machine are also changed and a healthier work is provided.
Adjustable tunnel conveyor speed
Soft press plunger for fixing the product during the cutting and pasting process
Tunnel transport system (silicone coated shafts, wire mesh band, teflon mesh band or heat resistant plastic modular band)
Side ironing rolls at the tunnel exit
P.I.D. Bonding is provided with the Electronic Temperature Control System.
Capacity: 6-8 packs / min. (According to product size)
All electrical cables inside the tunnel are non-flammable, outer shielded cables.
Required air pressure: 5 - 6 bar
Electricity: 380 V. 50-60 Hz. 1 Ph
The machine is installed on-site by our assembly team, given operating training, and delivered with usage and maintenance instructions.
